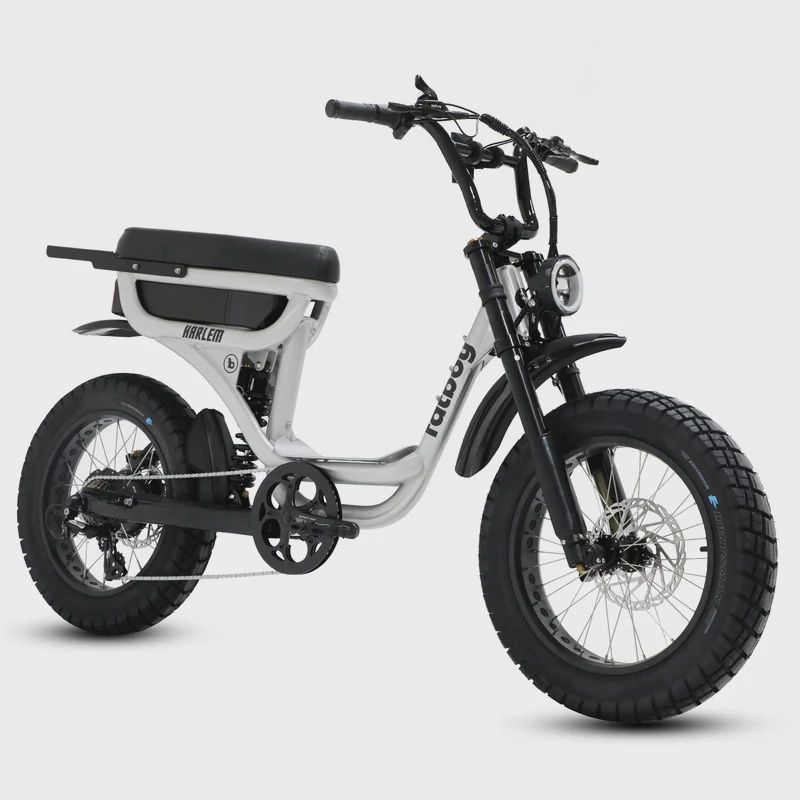

The Fatboy Harlem V3 EN15194 Certified

The Fatboy Harlem V3 EN15194 Certified brings all the comfort and approachability of the Harlem V3's step-through frame with full road legality across Australia. EN15194:2017 certified and capped at 25 km/h, it is the ideal choice for commuters, families, and riders who want to use their e-bike on public roads and bike paths without any compliance concerns — including in NSW. Powered by the intelligent FBX power architecture developed alongside Bafang, it delivers smooth, efficient power on every ride.

Key Specifications

Motor & Battery

• Motor: 48V BAFANG Hub Motor — 250W rated, FBX intelligent system, 1560W peak controller
• Battery: 48V Samsung Lithium-ion — EN certified
• Charge time: 4–6 hours
• Average range: ~40 km

Performance

• Frame: Step-through design — maximum accessibility for all riders
• Top speed: 25 km/h (EN15194 certified — cannot be unlocked)
• Torque: 100 Nm
• Drive mode: Cadence sensing pedal assist + twist throttle (up to 6 km/h unassisted; up to 25 km/h while pedalling)
• Maximum load: 180 kg

V3 Platform Upgrades

• FBX unified power architecture — Bafang-developed intelligent ecosystem connecting motor, battery, and controller for smoother power and unrivalled efficiency
• Fully adjustable front and rear suspension — industry-first custom tooling engineered to match the weight and geometry of every Fatboy V3
• 4-piston hydraulic brakes with metal sintered pads, custom cooling fins, and heavy-duty 203mm discs (2.9mm thick) — stronger, longer-lasting, more controlled stopping
• FBX smart speed lock — password-protect a custom top speed for family use
• Refined ergonomics: lower-profile seat, new bars and grips, improved crank ratio for comfortable high-speed pedalling
• Water & dirt resistant LCD colour display with phone charging

Warranty & Compliance

• Certification: EN15194:2017 certified — fully road legal across Australia (National EPAC compliant, including NSW from 1 Feb 2026)
• Speed: capped at 25 km/h — cannot be unlocked. Throttle operates up to 6 km/h independently; up to 25 km/h while pedalling
• Warranty: 2 years complete bike warranty

Why the Harlem V3 EN15194

The Harlem V3 EN15194 is the certified choice for everyday riding — fully road legal anywhere in Australia, with no throttle restrictions on public paths when pedalling. The step-through frame, FBX power system, and V3 suspension and braking upgrades make it the most complete road-legal fat-tyre e-bike for families and commuters.
